OVERVIEWS

The panel bellows is a new type of wall material for building; it can instead of brick wall to make bear of the pressure wall, non-bearing pressure wall, floor slab and balcony or veranda. It can expand the using area (10%-15%), insulate sound, heat insulation, resist earthquake, proof water. At the same time, it reduces the engineering's cost.

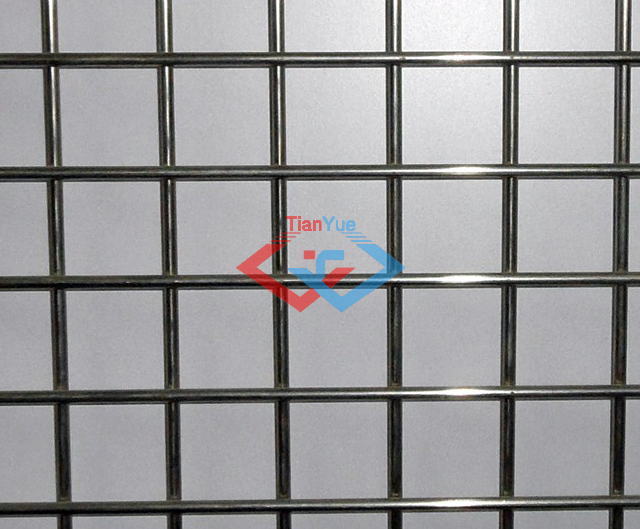

Reinforcing   Construction Mesh
Specifications	Wire Dia.(MM)	Opening(MM)	Net Weight(KG)
1.00M*2.0M	1.8	50*50	1.70
1.00M*2.0M	1.9	50*50	1.90
1.00M*2.0M	2.0	50*50	2.10
1.20M*2.4M	1.8	50*50	2.45
1.20M*2.4M	1.9	50*50	2.73
1.20M*2.4M	2.0	50*50	3.02
1.20M*3.0M	1.8	50*50	3.02
1.20M*3.0M	1.9	50*50	3.37
1.20M*3.0M	2.0	50*50	3.73
1.25M*6.0M	1.8	50*50	6.38
1.25M*6.0M	1.9	50*50	7.31
1.25M*6.0M	2.0	50*50	7.87
1.50M*6.0M	1.8	50*50	7.65
1.50M*6.0M	1.9	50*50	8.55
1.50M*6.0M	2.0	50*50	9.45

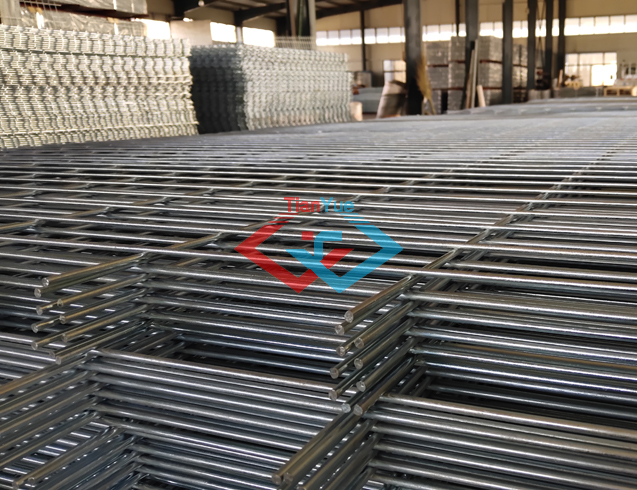

Heavy Welded Mesh   Panel
•    Wire size: 2mm to 12mm •    Materials: Mid steel/galvanized wire. Etc •    Finishes: Bright (plain)/powder coated/electro polished/galvanized/painted •    Edges: Trimmed or untrimmed
Wire   Diameter(mm)	Net Aperture(mm)
3-6mm	75   x 150
3-6mm	60   x 60
3-6mm	60   x 80
3-6mm	60   x 150
3-6mm	50   x 50
3-6mm	50   x 100
3-6mm	50   x 150
3-6mm	100   x 100
3-6mm	100   x 150
