Products Description
• Material - High quality low carbon steel wire
• Material - Stainless steel wire
ASSORTMENTS
• Electro galvanized before welding or after
• Hot-dip galvanized before welding or after
• Plastic coated after welding
CHARACTERISTICS
• Have the strong characteristic of antisepsis and contradicting oxygenation
USES
• Widely used in industry, agriculture, construction, transportation, mine field, lawn, cultivation, etc, professional guard, decorate, machine protection etc.

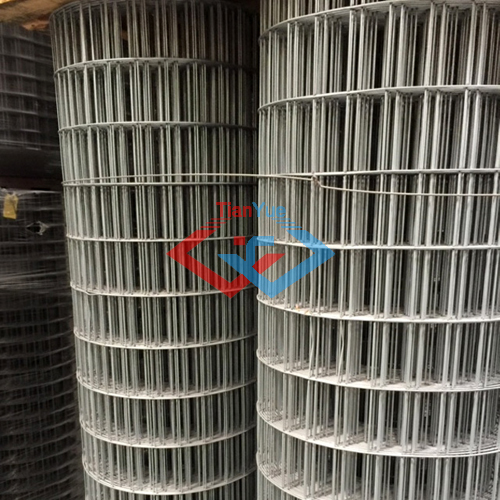

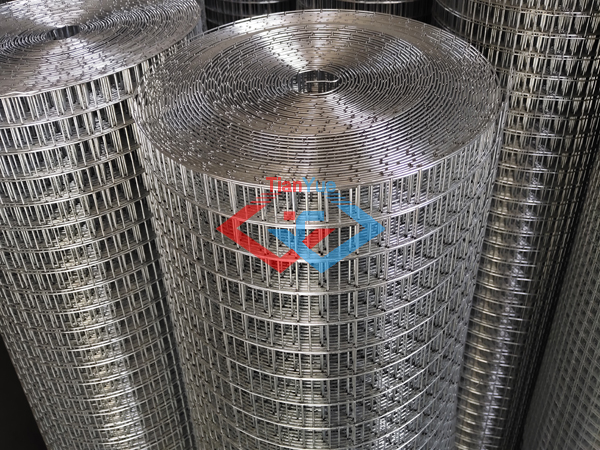

Welded Wire Mesh Roll
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
1/4" x 1/4"
6.4mm x 6.4mm
22,23,24
3/8" x 3/8"
10.6mm x 10.6mm
19,20,21,22
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8" x 5/8"
16mm x 16mm
18,19,20,21,
3/4" x 3/4"
19.1mm x 19.1mm
16,17,18,19,20,21
6/7" x 6/7"
2.18mm x 2.18mm
16,17,18,19,20,21
1" x 1/2"
25.4mm x 12.7mm
16,17,18,19,20,21
1-1/2" x 1-1/2"
38mm x 38mm
14,15,16,17,18,19
1" x 2"
25.4mm x 50.8mm
14,15,16
2" x 2"
50.8mm x 50.8mm
12,13,14,15,16
Technical Note:
1.Standard roll length: 30m; width: 0.5m to 1.8m
2.Special sizes available as requested
3. Packing: in waterproof paper in rolls. Custom packing available as requested.

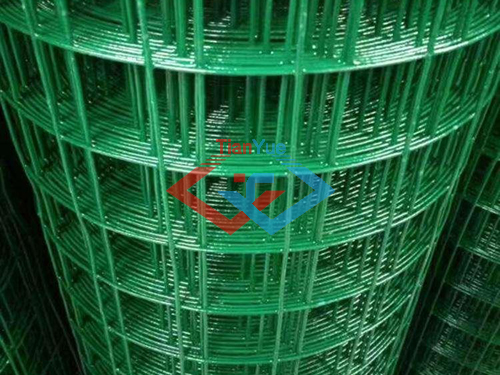

PVC Coated Welded Mesh
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21
3/4" x 3/4"
19mm x 19mm
16,17,18,19,20,21
1" x 1"
25.4mm x 25.4mm
15,16,17,18,19,20
Technical Note:
1. Standard roll length: 30m; width: 0.5m to 1.2m
2. Special sizes available as requested
3. Packing: in waterproof paper in rolls. Custom packing available as requested.
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
2" x 3"
50mm x 75mm
2.0mm,2.5mm,1.65mm
3" x 3"
75mm x 75mm
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"
50mm x 100mm
2.11mm,2.5mm
4" x 4"
100mm x 100mm
2.0mm,2.5mm
Technical Note:
1.Standard roll length: 30m; width: 0.5m to 1.8m
2.Special sizes available as requested
3. Packing: in waterproof paper in rolls. Custom packing available as requested.
