Products Description
OVERVIEW
Material：low carbon steel wire, stainless steel wire, fiber wire, aluminum magnesium alloy wire, galvanized wire, PVC wire, aluminum wire, etc.
Weaving: divided into I type and II type
Character: light weight, good toughness, corrosion-resistance, good ventilation and easy cleaning
Usage: used in restraint, public building, civil building to keep away mosquito and fly.

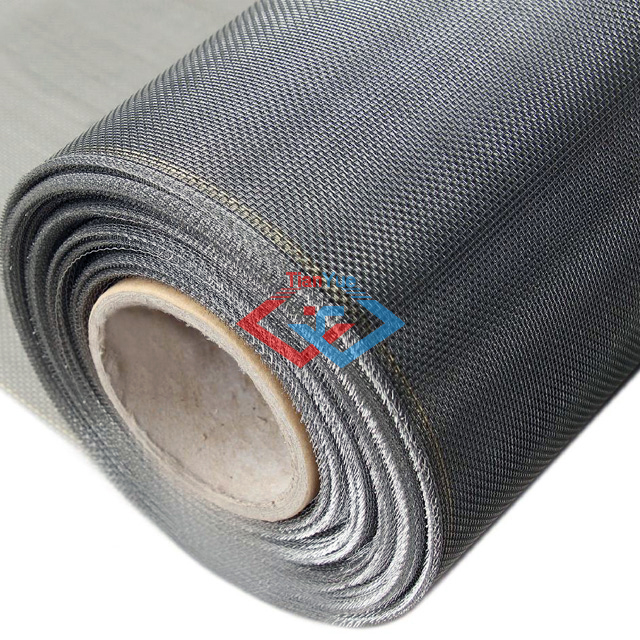

Window series: stainless steel window screen, paint window screen, galvanized window screen, al-mg window screen, PVC coated window screen, fiberglass window screen, and others.
Product name | Specifications | Notes | ||
Mesh | Wire Gauge | Dimension | ||
Galvanized window screen | 10x10 |
BWG31 BWG32 BWG33 BWG34
|
3"x100" 4"x100" 1x25M 1.2x30M 1.5x25M
| Electro galvanized. after weaving |
14x14 | ||||
16x16 | ||||
18x18 | White and blue white | |||
18x14 | ||||
22x22 | ||||
24x24 | ||||
Paint steel window screening | Same as above(Enameled) | Green or dark green | ||
Aluminum paint steel window screening | Same as above | Silver, white | ||
Aluminum window screening | Same as above | Al-mg wire or aluminum wire, paint aluminum window screen (epoxy) | ||
Fiberglass window screening | 12x12 |
BWG31 BWG32
| 3"x100" | Varies colors |
14x14 | 4"x100" | |||
16x16 | 1x25M | |||
16x14 | 1.2x25M | |||
Plastic window screening | 12x12 | Same as above | Mesh 12，14，16 is twill weaving。Mesh 18，22，24 is plain weaving。 White, blue and green, etc. | |
14x14 | ||||
16x16 | ||||
18x18 | ||||
18x14 | ||||
20x20 | ||||
Stainless steel window screening | 14x14 | SWG38 SWG37 SWG36 SWG35 SWG34 | 3"x100" 4"x100" 1x25M 1.2x25M | Material 304，316，316L |
16x16 | ||||
18x18 | ||||
18x14 | ||||
20x20 | ||||
PVC coated window screening | 12x12 | BWG31 BWG32 | Same as above | Apply to oil, pipeline, package, various colors |
14x14 | ||||
16x16 | ||||
18x18 | ||||
